Ginger Processing Line

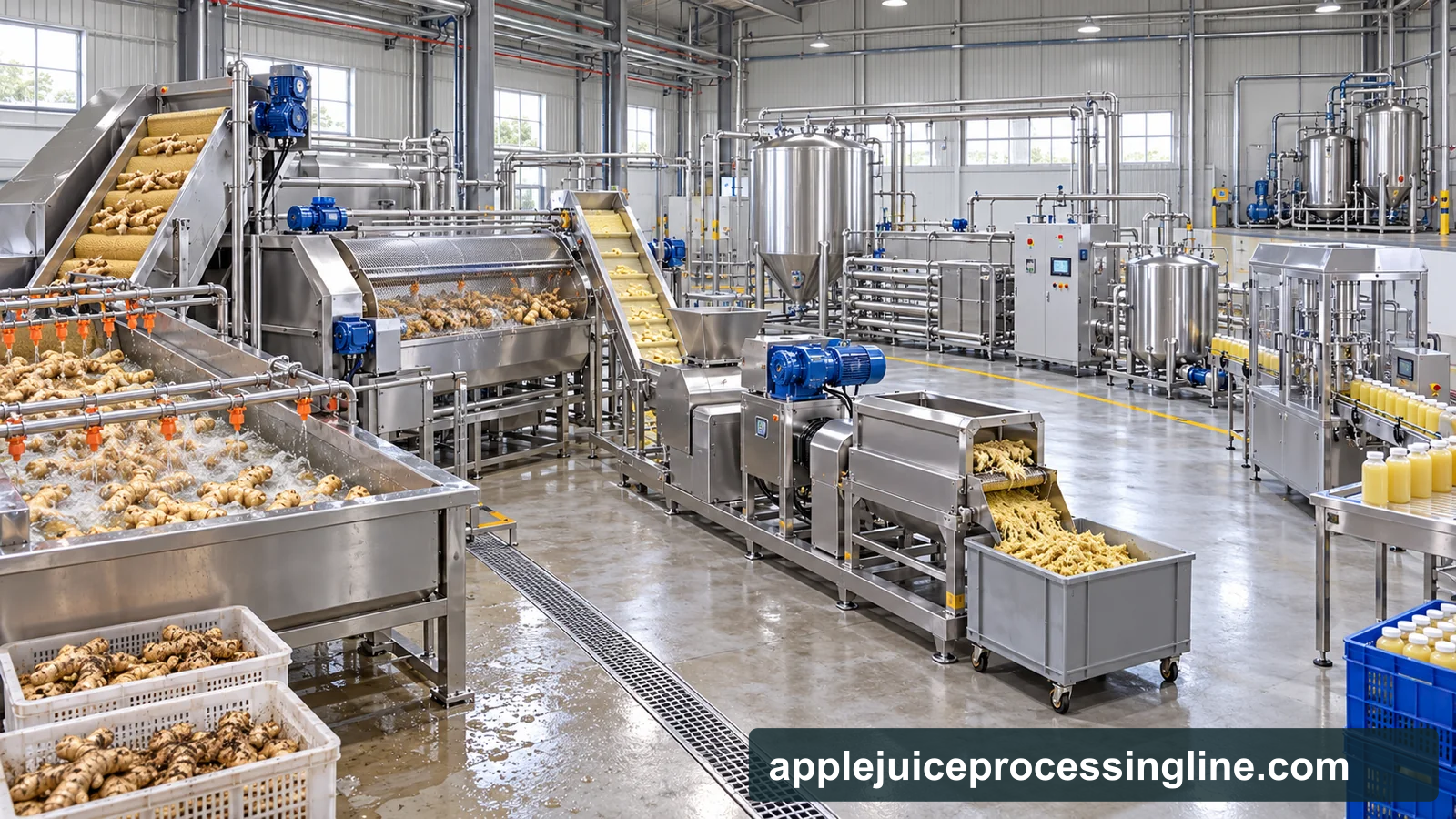

Depicted route: Ginger juice base
Ginger juice preparation should distinguish a pressed liquid from a ground paste. Soil removal, rhizome condition, controlled shredding and the desired suspended solids are the central front-end questions for a juice project. Separate soil and unsuitable rhizomes, wash and prepare the skin as specified before cutting and grinding. Control the resulting fibre length and paste coarseness. A plain ginger paste and a formulated ginger-based sauce have different ingredient and texture requirements; a powder or oil project would add separate operations.
Raw material and product boundary
Product directions
- ginger paste
- culinary blend base
Incoming material considerations
- What rhizome size, branching and skin condition will be accepted, and which cleaning or peeling steps must the plant perform?
- How fibrous or smooth should the paste be, and how will trials compare pungency, coarse strands and pumpability for the actual mature or young ginger supply?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Process flow: preparation to product
- 01
Receive inspected rhizomes
Equipment duty: Root inspection conveyor and receiving station
Record accepted ginger condition and remove unsuitable material.
Specify the incoming soil load and fibrous maturity rather than relying on the ingredient name alone.
- 02
Wash the irregular surface
Equipment duty: Rhizome washer and rinse arrangement
Remove adhering soil before cutting.
Check recesses and branches on actual ginger pieces; a smooth-root reference is not sufficient.
- 03
Trim and define skin inclusion
Equipment duty: Trimming and selected surface-preparation station
Prepare the accepted edible rhizome fraction.
State any peeling objective and its recovery consequence explicitly.
- 04
Shred consistently
Equipment duty: Rhizome shredder or cutter
Create a reproducible feed for the juice press.
Fine grinding and coarse shredding can produce different suspended-solid loads; record the condition used in the trial.
- 05
Press the juice
Equipment duty: Product-compatible screw or other selected press
Separate liquid from fibrous ginger solids.
Review the liquid’s particle load and quality as well as press-cake condition.
- 06
Finish to the application
Equipment duty: Screening or selected further separation and covered buffer
Meet the declared juice-base specification.
A smooth beverage ingredient and a culinary ginger base may accept different suspended solids; full clarification is not assumed.
- 07
Specify preservation around the actual product
Equipment duty: Selected treatment unit, controlled transfer and process instruments
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The pressed ginger juice base route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
- 08
Fill, identify and verify the packed ingredient
Equipment duty: Compatible filler, packaging interface and lot-identification station
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment composition and selection
Root inspection conveyor and receiving station
Control the incoming-material presentation before preparation.
Selection basis: Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Trimming and selected surface-preparation station
Soil removal and texture development.
Selection basis: Preparation, particle size and any conditioning step should be evaluated for the actual vegetable and product. Do not borrow a fruit-juice preservation schedule for a vegetable formulation.
Rhizome shredder or cutter
Create the agreed intermediate condition for downstream equipment.
Selection basis: Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Selection basis: Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
Selection basis: The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Packaging and storage interfaces
Specify whether the pressed ginger juice base is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Information for an engineering brief
- Compare the actual rhizome supply at controlled shredding conditions, reviewing suspended solids and the intended final application.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Quality, cleaning and separate streams
Quality observations
- Assess grit, coarse fibre, suspended solids, flavour and sediment with preparation settings recorded. No published trial recovery or operating parameter is transferred as a guarantee.
- Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separate material streams
- Collect soil-bearing trim and fibrous press cake separately. Keep any proposed secondary extract and added water distinct from the main pressed juice.
Cleaning and changeover
- Fibres and adhering root soils need access at washers, shredders, screens and press discharge. Verify cleaning for the actual concentrated ginger residues and any shared recipe.
- Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Ginger and apple juice
Where this route differs from the site's primary line
An apple line separates extraction, clarity and concentration into different decisions. The same distinction is useful here: first define the edible feed and the product to be recovered, then specify any refinement, concentration and packaging. The sequence below describes this material rather than assuming that an apple press or clarification setting transfers unchanged.
Vegetable products may be juice, purée or sauce. Soil removal, fibrous tissue and product-specific preservation can dominate the brief even when the downstream duties resemble an apple line.
Questions about this processing route
Is ginger juice the same as ginger paste?
No. A paste retains ground edible solids, whereas pressing separates a liquid fraction from fibrous cake. Their equipment, texture and material balances differ.
Is full clarification always appropriate?
Not automatically. Define the desired suspended solids and application, then assess the technical and product consequences. A published press example does not establish the economics or settings of another clarification project.
What should a useful ginger trial establish?
Compare the actual rhizome supply at controlled shredding conditions, reviewing suspended solids and the intended final application. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
