Vegetables, Roots & Rhizomes / processing line
Pumpkin Processing Line

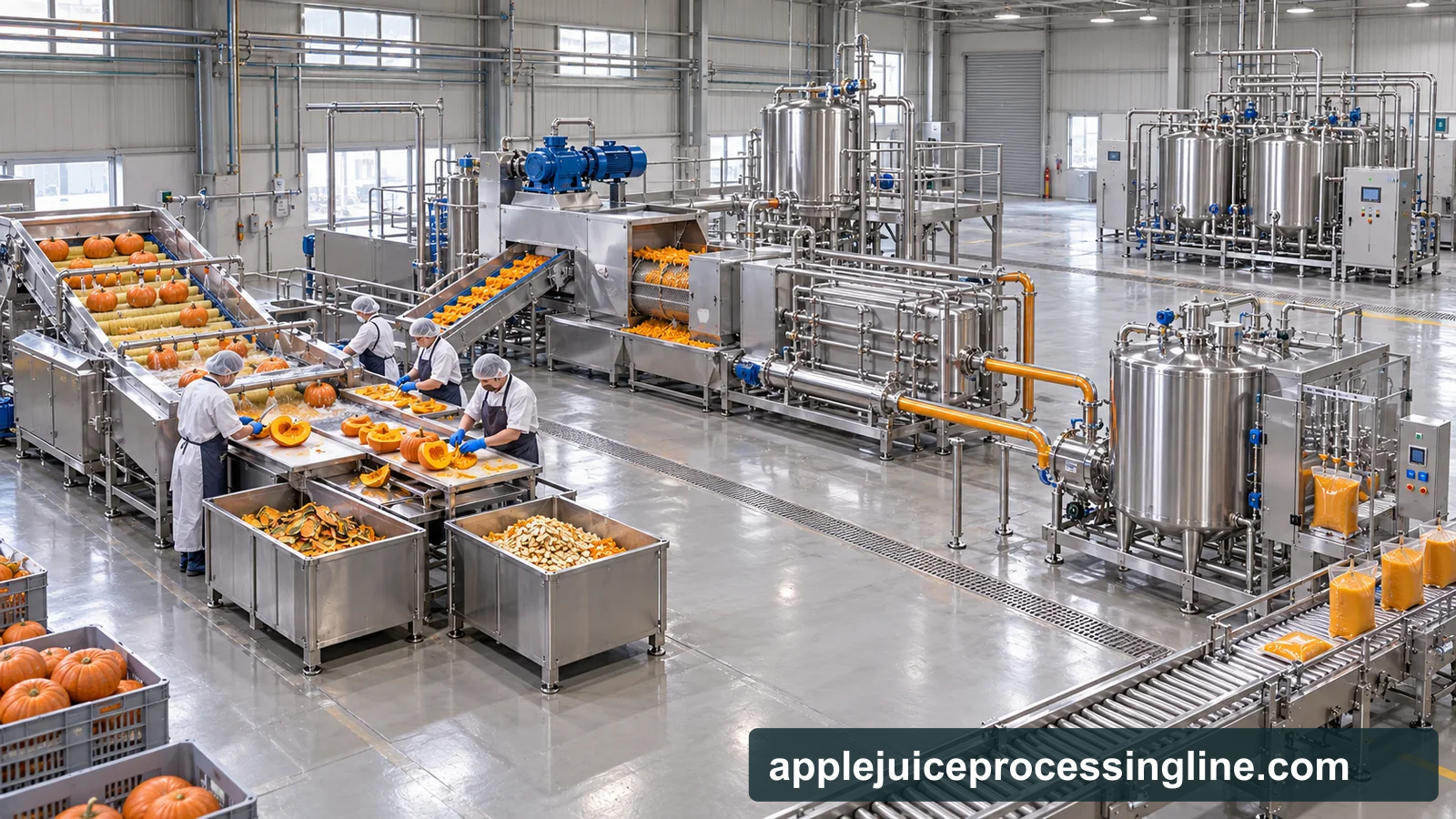

Depicted route: Pumpkin puree
Pumpkin purée preparation should separate rind, seeds and stringy cavity material before developing the flesh texture. Any cooking or softening stage has a preparation purpose that must remain distinct from final preservation validation. Wash pumpkins, open and remove the seed cavity, then separate unwanted rind and stringy material. Reduce and soften the edible flesh before refining to the selected texture. A plain vegetable purée and a seasoned soup or sweet bakery filling are different formulations and need separate solids, particle and packing specifications.
Raw material and product boundary
Product directions
- purée
- soup base
- bakery filling base
Incoming material considerations
- Which pumpkin varieties and rind thicknesses must preparation accommodate, and who handles seed-cavity and peel waste?
- Does the buyer want a smooth pumpable purée or a thicker filling base, and how will variable flesh moisture, coarse fibres and heat-transfer behaviour be evaluated before choosing downstream equipment?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Process flow: preparation to product
- 01
Receive specified pumpkins
Equipment duty: Inspection conveyor and size-assessment station
Identify accepted variety, dimensions and condition.
Record flesh character and rind thickness where they affect the preparation work.
- 02
Clean the exterior
Equipment duty: Vegetable washer and rinse
Clean before cutting exposes edible flesh.
Keep dirty external handling and rejected rind outside the clean flesh path.
- 03
Open and separate components
Equipment duty: Guarded cutting, seed-cavity removal and rind-preparation stations
Recover the accepted flesh fraction.
Define the labour or assisted operations included; a large intact pumpkin should not be shown entering a generic pulper without preparation.
- 04
Condition prepared pieces
Equipment duty: Defined cooker or softening interface where required
Prepare flesh for the selected purée texture.
The conditioning profile needs development for the actual piece size and product; it is not a universal final preservation schedule.
- 05
Mash and refine
Equipment duty: Masher and product-compatible refiner
Develop the desired consistency and remove unwanted coarse material.
Assess stringy pieces and coarse skin against the intended filling or ingredient application.
- 06
Transfer the purée
Equipment duty: Covered vessel and viscous-product pump
Supply the developed flesh product to final treatment and filling.
Recipe ingredients and concentration add separate product and transfer requirements.
- 07
Specify preservation around the actual product
Equipment duty: Selected treatment unit, controlled transfer and process instruments
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The cooked-flesh purée route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
- 08
Fill, identify and verify the packed ingredient
Equipment duty: Compatible filler, packaging interface and lot-identification station
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment composition and selection
Inspection conveyor and size-assessment station
Control the incoming-material presentation before preparation.
Selection basis: Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Guarded cutting, seed-cavity removal and rind-preparation stations
Soil removal and texture development.
Selection basis: Preparation, particle size and any conditioning step should be evaluated for the actual vegetable and product. Do not borrow a fruit-juice preservation schedule for a vegetable formulation.
Defined cooker or softening interface where required
Create the agreed intermediate condition for downstream equipment.
Selection basis: Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Selection basis: Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
Selection basis: The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Packaging and storage interfaces
Specify whether the cooked-flesh purée is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Information for an engineering brief
- Trial the purchased variety and piece-size range, keeping preparation softening separate from final product preservation acceptance.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Quality, cleaning and separate streams
Quality observations
- Review seed or rind fragments, stringy material, colour and consistency at a defined sample condition. Include the actual piece preparation and conditioning in the record.
- Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separate material streams
- Collect rind, seeds, cavity fibres and coarse rejects separately. Record the edible-flesh fraction rather than implying whole-pumpkin recovery.
Cleaning and changeover
- Cooked or mashed flesh can adhere to cutters, cooking contacts and screens. Include inspection access and cleaning verification for both open preparation and the closed purée circuit.
- Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Pumpkin and apple juice
Where this route differs from the site's primary line
An apple line separates extraction, clarity and concentration into different decisions. The same distinction is useful here: first define the edible feed and the product to be recovered, then specify any refinement, concentration and packaging. The sequence below describes this material rather than assuming that an apple press or clarification setting transfers unchanged.
Vegetable products may be juice, purée or sauce. Soil removal, fibrous tissue and product-specific preservation can dominate the brief even when the downstream duties resemble an apple line.
Questions about this processing route
Does softening pumpkin establish shelf stability?
No. Softening develops a preparation condition or texture. The actual final product, preservation, package and storage system require their own assessment and validation.
Is the seed cavity part of ordinary purée feed?
The route should define removal of unwanted seeds and coarse cavity material before final purée acceptance. A clear component-separation brief is more useful than assuming all pumpkin parts enter the same process.
What should a useful pumpkin trial establish?
Trial the purchased variety and piece-size range, keeping preparation softening separate from final product preservation acceptance. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
