Orchard & Vine Fruit / processing line
Pear Processing Line

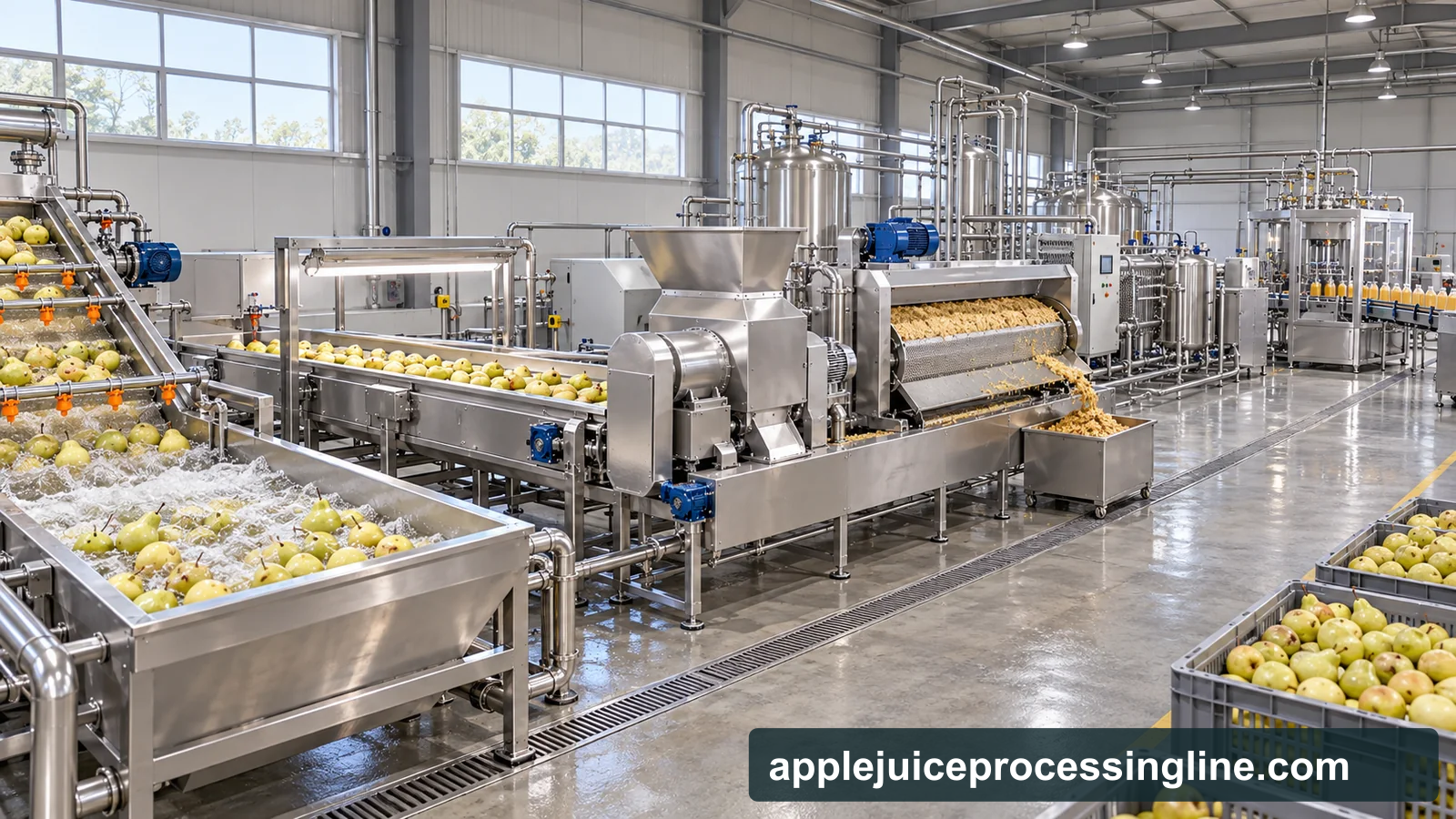

Depicted route: Pear juice
Pear projects need a deliberate decision between expressed juice and a flesh-containing purée. The accepted variety and maturity affect preparation, and a fine purée target should consider the characteristic gritty texture rather than relying on appearance alone. Inspect pears for soundness and processing ripeness, wash and reduce the flesh to a suitable mash. Pressing leads to juice; pulping and refining lead to purée. The selected screen or separation step should be judged on the resulting mouthfeel, with clarification added only for a clear-juice product.
Raw material and product boundary
Product directions
- cloudy juice
- clear juice
- purée
Incoming material considerations
- Are incoming pears firm processing fruit or soft ripe fruit, and how widely does flesh texture vary during the season?
- For purée, what level of graininess or coarse material is acceptable; for juice, is the priority retained cloud, clarity or easy concentration?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Process flow: preparation to product
- 01
Receive by condition
Equipment duty: Inspection conveyor and lot-sampling station
Identify accepted pear variety, maturity and storage condition.
Soft fruit and firm fruit can present different feed and mash behaviour to the preparation section.
- 02
Wash and remove unsuitable fruit
Equipment duty: Fruit washer and rinse elevator
Clean accepted fruit before it is reduced in size.
Keep decayed or badly damaged fruit outside the combined prepared feed.
- 03
Prepare the feed
Equipment duty: Pear chopper or mill
Produce a controlled feed for pressing or refining.
Define the intermediate mash rather than assuming that the apple mill setting is automatically suitable.
- 04
Choose the edible fraction
Equipment duty: Juice press or purée pulper-refiner
Recover the product described by the buyer’s specification.
Expressed liquid and flesh-containing purée require different separation and recovery assessments.
- 05
Develop the texture
Equipment duty: Screening and selected refining or clarification equipment
Control coarse material and the desired appearance.
For purée, evaluate mouthfeel and gritty particles; for juice, define cloud and any clarification objective separately.
- 06
Transfer without an undefined hold
Equipment duty: Covered buffer tank and suitable pump
Deliver the accepted product to the next operation.
Record the expected consistency, settling behaviour and maximum operational interruptions for line integration.
- 07
Specify preservation around the actual product
Equipment duty: Selected treatment unit, controlled transfer and process instruments
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The juice or purée ingredient route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
- 08
Fill, identify and verify the packed ingredient
Equipment duty: Compatible filler, packaging interface and lot-identification station
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment composition and selection
Inspection conveyor and lot-sampling station
Control the incoming-material presentation before preparation.
Selection basis: Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Pear chopper or mill
Pressing or refining.
Selection basis: A press separates liquid from a prepared feed, while a refiner develops a flesh-containing product. The buyer should define which fraction is sold before selecting the separation train.
Juice press or purée pulper-refiner
Create the agreed intermediate condition for downstream equipment.
Selection basis: Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Selection basis: Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
Selection basis: The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Packaging and storage interfaces
Specify whether the juice or purée ingredient is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Information for an engineering brief
- Trial a representative firm lot and a softer accepted lot, keeping juice and purée acceptance criteria separate.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Quality, cleaning and separate streams
Quality observations
- Compare browning, flavour, mouthfeel, cloud and settling using a repeatable sampling method. Include the most challenging accepted maturity range in the trial.
- Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separate material streams
- Identify pomace, core-rich material and refining rejects separately. Any secondary extraction must be evaluated as a separate stream with a declared product identity.
Cleaning and changeover
- Pear mash can remain in mills, press surfaces and screen apertures. Include inspection access and define the cleaning status required before another fruit is introduced.
- Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Pear and apple juice
Where this route differs from the site's primary line
An apple line separates extraction, clarity and concentration into different decisions. The same distinction is useful here: first define the edible feed and the product to be recovered, then specify any refinement, concentration and packaging. The sequence below describes this material rather than assuming that an apple press or clarification setting transfers unchanged.
Pear, grape and kiwifruit show why an apple press sequence is only a starting comparison. Skin, seeds, firmness and the intended cloud level change preparation and separation.
Questions about this processing route
Why evaluate gritty particles in pear purée?
The intended smoothness is a product requirement. A representative sample should be assessed for mouthfeel and particle character after the proposed refining sequence rather than accepted solely because it appears uniform.
Can the pear and apple routes share equipment?
Shared operations may be practical, but the accepted feed, separation objective and cleaning changeover must be demonstrated. Similar fruit shape does not establish identical pressability or final texture.
What should a useful pear trial establish?
Trial a representative firm lot and a softer accepted lot, keeping juice and purée acceptance criteria separate. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical reading and related materials
Define the line around your material
Include the incoming form, product target, quantity and measurement basis, package and known site interfaces in your enquiry. Describe this material explicitly in the project goal.
Prepare a project enquiry →
