Grape Processing Line

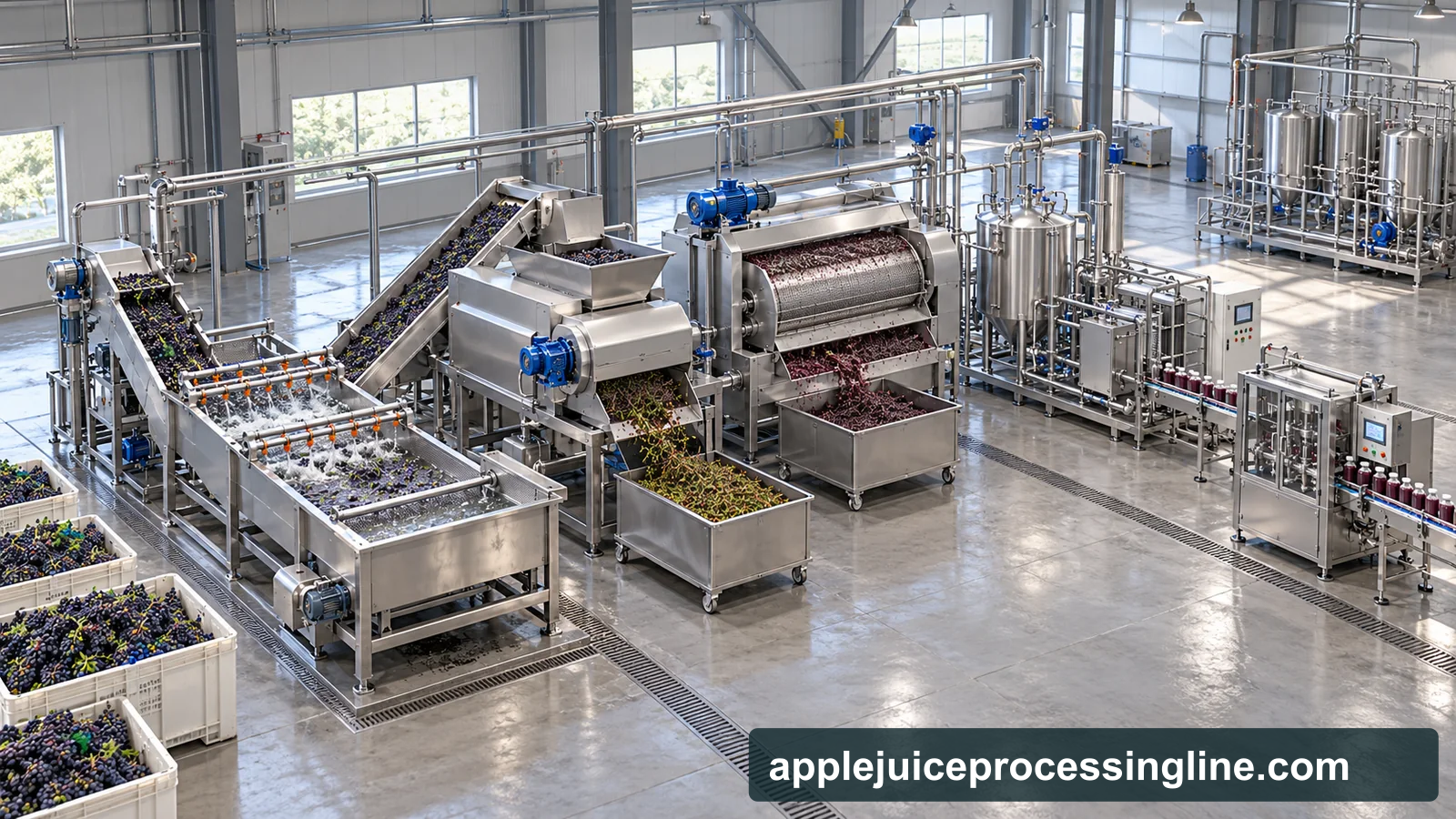

Depicted route: Grape juice
Grape variety and the desired colour guide the extraction brief. Destemming, seed integrity and skin contact should be considered alongside pressing and any later clarification; wine equipment terminology does not define a non-alcoholic juice process. Remove unwanted stems, inspect and crush grapes before the chosen pressing route. Skin contact affects colour extraction, so white and deeply coloured juices should not share an assumed recipe. Clarification and management of later crystalline deposits are additional product decisions before concentration or packing.
Raw material and product boundary
Product directions
- grape juice
- juice concentrate
- jelly base
Incoming material considerations
- Which grape varieties and target colour will be used, and should the process maximise skin colour extraction or minimise it?
- How will the finished juice be checked for tartrate deposits during its intended storage, and what stem and seed carryover can the extraction stage tolerate?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Process flow: preparation to product
- 01
Receive separate lots
Equipment duty: Inspection conveyor and receiving hopper
Inspect bunches and identify the variety and condition.
Keep light and dark juice objectives visible in the lot records rather than treating all grapes as one interchangeable feed.
- 02
Destem and clean
Equipment duty: Destemmer with inspected feed and cleaning arrangement
Separate stems and foreign matter from the edible fruit fraction.
Stems and attached debris need their own reject route before crushing and pressing.
- 03
Open the berries
Equipment duty: Controlled crusher
Prepare a consistent feed without unnecessary seed disruption.
Assess the accepted amount of skin contact and seed carryover for the intended flavour and colour.
- 04
Develop the extraction route
Equipment duty: Covered conditioning vessel where required and juice press
Recover juice from the prepared grape feed.
A coloured juice may need a different skin-contact development trial from a light juice; no fixed conditioning recipe is assumed.
- 05
Review clarity and deposits
Equipment duty: Screen, buffer vessel and selected clarification equipment
Separate coarse solids and evaluate the desired final appearance.
Investigate sediment or crystalline deposits through representative holding trials rather than treating a newly filtered sample as a finished stability result.
- 06
Select concentration or direct treatment
Equipment duty: Closed juice buffer and optional evaporator interface
Send approved juice to its specified downstream route.
Concentrate is a different product specification with different handling and reconstitution requirements.
- 07
Specify preservation around the actual product
Equipment duty: Selected treatment unit, controlled transfer and process instruments
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The juice or concentrate base route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
- 08
Fill, identify and verify the packed ingredient
Equipment duty: Compatible filler, packaging interface and lot-identification station
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment composition and selection
Inspection conveyor and receiving hopper
Control the incoming-material presentation before preparation.
Selection basis: Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Controlled crusher
Pressing or refining.
Selection basis: A press separates liquid from a prepared feed, while a refiner develops a flesh-containing product. The buyer should define which fraction is sold before selecting the separation train.
Covered conditioning vessel where required and juice press
Create the agreed intermediate condition for downstream equipment.
Selection basis: Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Selection basis: Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
Selection basis: The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Packaging and storage interfaces
Specify whether the juice or concentrate base is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Information for an engineering brief
- Trial declared grape varieties and review colour extraction, seed integrity and settled samples after consistent holding.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Quality, cleaning and separate streams
Quality observations
- Record colour, flavour, acidity, soluble solids and sediment behaviour together. Compare samples using the same holding and preparation method.
- Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separate material streams
- Collect stems, skins and seeds separately from juice. Their proposed co-product use does not automatically belong to the juice line supply.
Cleaning and changeover
- Stem fragments and skins can accumulate in crusher and press contact points. Include press-surface access, screening inspection and a separate cleaning plan for any clarification equipment.
- Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Grape and apple juice
Where this route differs from the site's primary line
An apple line separates extraction, clarity and concentration into different decisions. The same distinction is useful here: first define the edible feed and the product to be recovered, then specify any refinement, concentration and packaging. The sequence below describes this material rather than assuming that an apple press or clarification setting transfers unchanged.
Pear, grape and kiwifruit show why an apple press sequence is only a starting comparison. Skin, seeds, firmness and the intended cloud level change preparation and separation.
Questions about this processing route
Is a grape juice plant a winemaking line?
No. Non-alcoholic juice has a different product and preservation brief. Shared operations such as destemming or pressing do not establish the rest of the process or its hygiene and distribution requirements.
Why can a clear sample later form deposits?
The sample’s appearance immediately after separation is only one observation. The product brief should include representative holding trials and investigation of the particular sediment or crystals, with an appropriate process developed for that product.
What should a useful grape trial establish?
Trial declared grape varieties and review colour extraction, seed integrity and settled samples after consistent holding. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
