Jujube / Chinese Red Date Processing Line

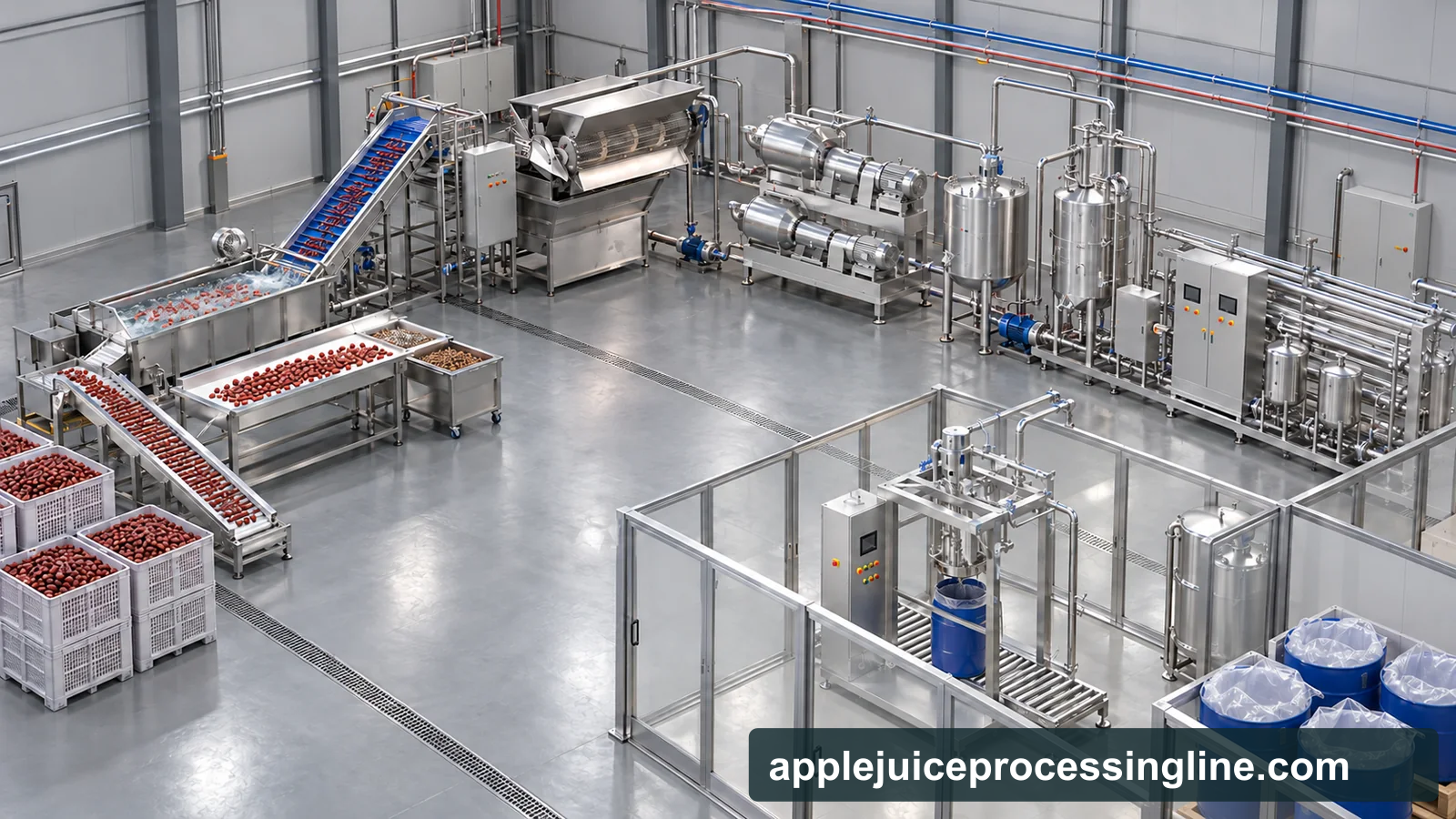

Depicted route: Jujube puree
Jujube, or Chinese red date, is not date-palm fruit. Fresh and dried jujube need different inlet definitions, with stone removal and any water or conditioning step recorded before a purée or extraction route is selected. Treat jujube as its own raw material, distinct from date-palm fruit. Sort and wash fresh or dried jujubes, separate pits and prepare the flesh for pulping or extraction. Dried fruit may need a defined softening stage. Paste filling and beverage ingredients require different retention of skin and other insoluble material.
Raw material and product boundary
Product directions
- jujube paste
- juice beverage base
- jam
Incoming material considerations
- Will the plant use fresh jujubes, dried red dates or both, and which pit-removal and softening steps are included?
- Should the buyer receive a dark whole-fruit paste, a smoother refined filling or an extracted beverage base, and what skin particles and pit-fragment limits apply?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Process flow: preparation to product
- 01
Identify the incoming material
Equipment duty: Receiving and inspection station
Record jujube type, maturity and fresh or dried supply condition.
Do not combine date-palm fruit assumptions with a jujube preparation specification.
- 02
Clean the declared supply
Equipment duty: Appropriate cleaning and inspection arrangement
Remove foreign matter and unsuitable fruit.
A dried feed may need a separately developed preparation sequence; it should not inherit a fresh-fruit wash by default.
- 03
Remove pits
Equipment duty: Jujube-compatible pitter and inspection point
Separate the hard pits from the edible fraction.
Assess fragments and retained flesh on the actual size and condition range.
- 04
Prepare a controlled flesh feed
Equipment duty: Cutter and defined conditioning vessel where needed
Develop the inlet condition required for pulping.
Record any added water and preparation changes separately from recovered fruit flesh.
- 05
Pulp and refine
Equipment duty: Purée pulper-refiner
Meet the selected skin, fibre and consistency requirements.
A whole-flesh purée and an extracted juice product retain different fractions and need separate acceptance criteria.
- 06
Transfer the chosen ingredient
Equipment duty: Covered tank and viscosity-compatible pump
Supply the declared purée, filling or separately developed juice route.
Concentration and formulated paste production are additional product decisions.
- 07
Specify preservation around the actual product
Equipment duty: Selected treatment unit, controlled transfer and process instruments
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The pitted jujube purée route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
- 08
Fill, identify and verify the packed ingredient
Equipment duty: Compatible filler, packaging interface and lot-identification station
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment composition and selection
Receiving and inspection station
Control the incoming-material presentation before preparation.
Selection basis: Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Jujube-compatible pitter and inspection point
Material-specific preparation.
Selection basis: The preparation section must address the actual peel, pit, shell or seed structure. Fruit names alone do not define a suitable inlet condition for the next machine.
Cutter and defined conditioning vessel where needed
Create the agreed intermediate condition for downstream equipment.
Selection basis: Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Selection basis: Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
Selection basis: The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Packaging and storage interfaces
Specify whether the pitted jujube purée is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Information for an engineering brief
- Trial the declared fresh or dried jujube supply, maintaining a separate water balance and pit-rejection record.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Quality, cleaning and separate streams
Quality observations
- Check pit fragments, skin and fibre character, flavour and consistency with fresh/dried supply state recorded. Compare like-for-like samples rather than unidentified mixed feeds.
- Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separate material streams
- Keep pits, skins and coarse fibre rejects identified. Any extraction water and secondary liquid stream must be visible in the material balance.
Cleaning and changeover
- Hard pits and sticky rehydrated or fresh flesh require inspection access at pitting, screens and transfer fittings. Cleaning procedures should reflect the actual incoming route.
- Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Jujube / Chinese Red Date and apple juice
Where this route differs from the site's primary line
An apple line separates extraction, clarity and concentration into different decisions. The same distinction is useful here: first define the edible feed and the product to be recovered, then specify any refinement, concentration and packaging. The sequence below describes this material rather than assuming that an apple press or clarification setting transfers unchanged.
Aril separation, dried-fruit rehydration and stone removal are distinct from apple milling. Define the edible fraction and the expected residue before comparing recovered juice or purée.
Questions about this processing route
Are jujube and date-palm fruit interchangeable?
No. They are different fruits with different preparation conditions. The raw-material name, supply state and intended product should be explicit in the project brief.
Can dried jujube use the fresh-fruit settings?
A dried inlet may need conditioning or extraction development and a declared water balance. Those operations should be specified and demonstrated rather than assumed to match fresh-fruit preparation.
What should a useful jujube / chinese red date trial establish?
Trial the declared fresh or dried jujube supply, maintaining a separate water balance and pit-rejection record. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
