Persimmon Processing Line

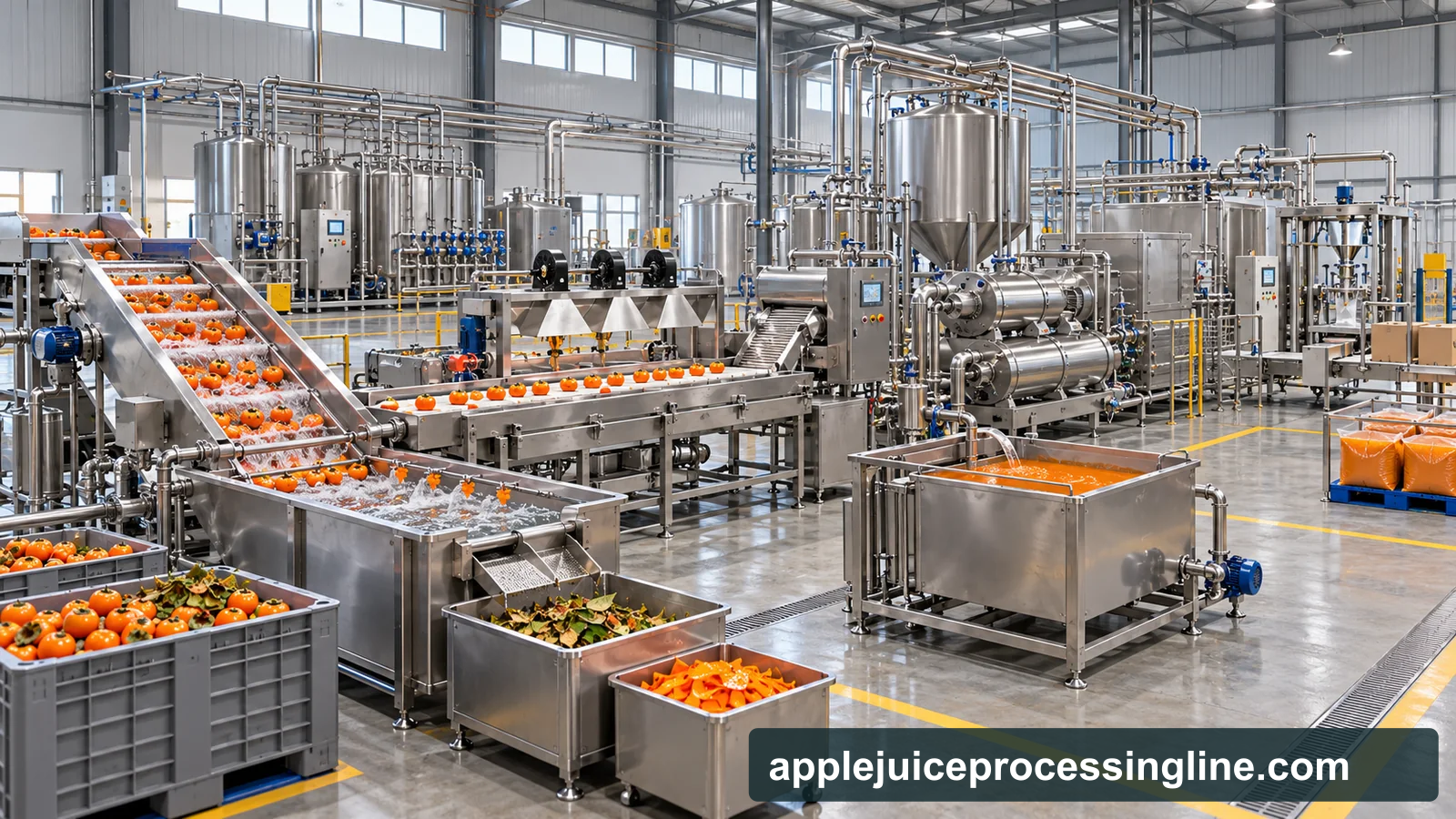

Depicted route: Persimmon puree
Persimmon preparation should identify astringent or non-astringent fruit and its accepted ripeness. A line cannot repair an undefined raw-material brief simply by pulping the fruit to a smooth appearance. Identify the persimmon variety and edible ripeness, remove unwanted calyx, skin and seed material, and recover the flesh as purée. Astringency acceptance belongs at raw-material preparation, before the purée is treated as a finished ingredient. Frozen-pulp references support a product route but do not establish an ambient shelf-life process.
Raw material and product boundary
Product directions
- purée
- frozen fruit base
- dessert ingredient
Incoming material considerations
- Is the incoming crop an astringent or non-astringent type, and what acceptance check confirms that fruit is ready for the intended purée?
- What calyx fragments, seed pieces and colour change can the finished base tolerate, and will the buyer use frozen bulk pulp or commission a separately validated packaged product?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Process flow: preparation to product
- 01
Receive type-defined lots
Equipment duty: Inspection conveyor and maturity sampling
Identify the accepted persimmon type and condition.
Astringency and ripeness must be evaluated on the actual supply rather than inferred only from colour.
- 02
Wash the exterior
Equipment duty: Fruit washer and rinse section
Clean accepted fruit before trimming and flesh handling.
Keep rejected fruit and dirty external handling out of the edible-flesh transfer.
- 03
Remove calyx and unwanted material
Equipment duty: Trimming and flesh-inspection station
Prepare the fruit for pulping.
Confirm the accepted peel and any seed-removal objective before selecting the preparation arrangement.
- 04
Pulp the flesh
Equipment duty: Controlled-feed pulper
Develop the chosen flesh-containing ingredient.
Assess the actual soft-fruit feed and interruption pattern rather than relying on a nominal conveyor rate.
- 05
Set texture and skin character
Equipment duty: Selected refiner and screen
Remove unacceptable coarse material.
A smooth appearance does not establish an acceptable flavour or astringency profile.
- 06
Route the accepted purée
Equipment duty: Covered vessel and suitable pump
Connect the developed ingredient to its defined preservation and packing route.
Drying whole fruit and making purée are different product routes and should not share an undifferentiated line specification.
- 07
Specify preservation around the actual product
Equipment duty: Selected treatment unit, controlled transfer and process instruments
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The ripe-flesh purée route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
- 08
Fill, identify and verify the packed ingredient
Equipment duty: Compatible filler, packaging interface and lot-identification station
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment composition and selection
Inspection conveyor and maturity sampling
Control the incoming-material presentation before preparation.
Selection basis: Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Trimming and flesh-inspection station
Material-specific preparation.
Selection basis: The preparation section must address the actual peel, pit, shell or seed structure. Fruit names alone do not define a suitable inlet condition for the next machine.
Controlled-feed pulper
Create the agreed intermediate condition for downstream equipment.
Selection basis: Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Selection basis: Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
Selection basis: The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Packaging and storage interfaces
Specify whether the ripe-flesh purée is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Information for an engineering brief
- Compare accepted fruit types and maturity limits against a declared flavour and texture sample.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Quality, cleaning and separate streams
Quality observations
- Review astringency, flavour, coarse particles, colour and consistency on type- and maturity-defined samples. Do not use a smooth texture as the sole product acceptance criterion.
- Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separate material streams
- Separate calyx, unwanted peel, seeds where present and coarse rejects. Identify each fraction rather than treating trimming loss as an unexplained recovery difference.
Cleaning and changeover
- Soft adhering flesh and calyx fragments require accessible pulper and screen contact areas. Inspect open trimming separately from closed-transfer cleaning.
- Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Persimmon and apple juice
Where this route differs from the site's primary line
An apple line separates extraction, clarity and concentration into different decisions. The same distinction is useful here: first define the edible feed and the product to be recovered, then specify any refinement, concentration and packaging. The sequence below describes this material rather than assuming that an apple press or clarification setting transfers unchanged.
Aril separation, dried-fruit rehydration and stone removal are distinct from apple milling. Define the edible fraction and the expected residue before comparing recovered juice or purée.
Questions about this processing route
Can a pulper remove astringency by itself?
A pulper changes the physical fruit condition; it does not establish the flavour suitability of the incoming material. The raw supply and any separate product-development treatment need explicit evaluation.
Should every persimmon be handled as firm fruit?
No. The accepted type and ripeness determine the actual feed condition. Preparation and transfer should be demonstrated with that condition, especially where soft flesh is the intended inlet.
What should a useful persimmon trial establish?
Compare accepted fruit types and maturity limits against a declared flavour and texture sample. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
