Passion Fruit Processing Line

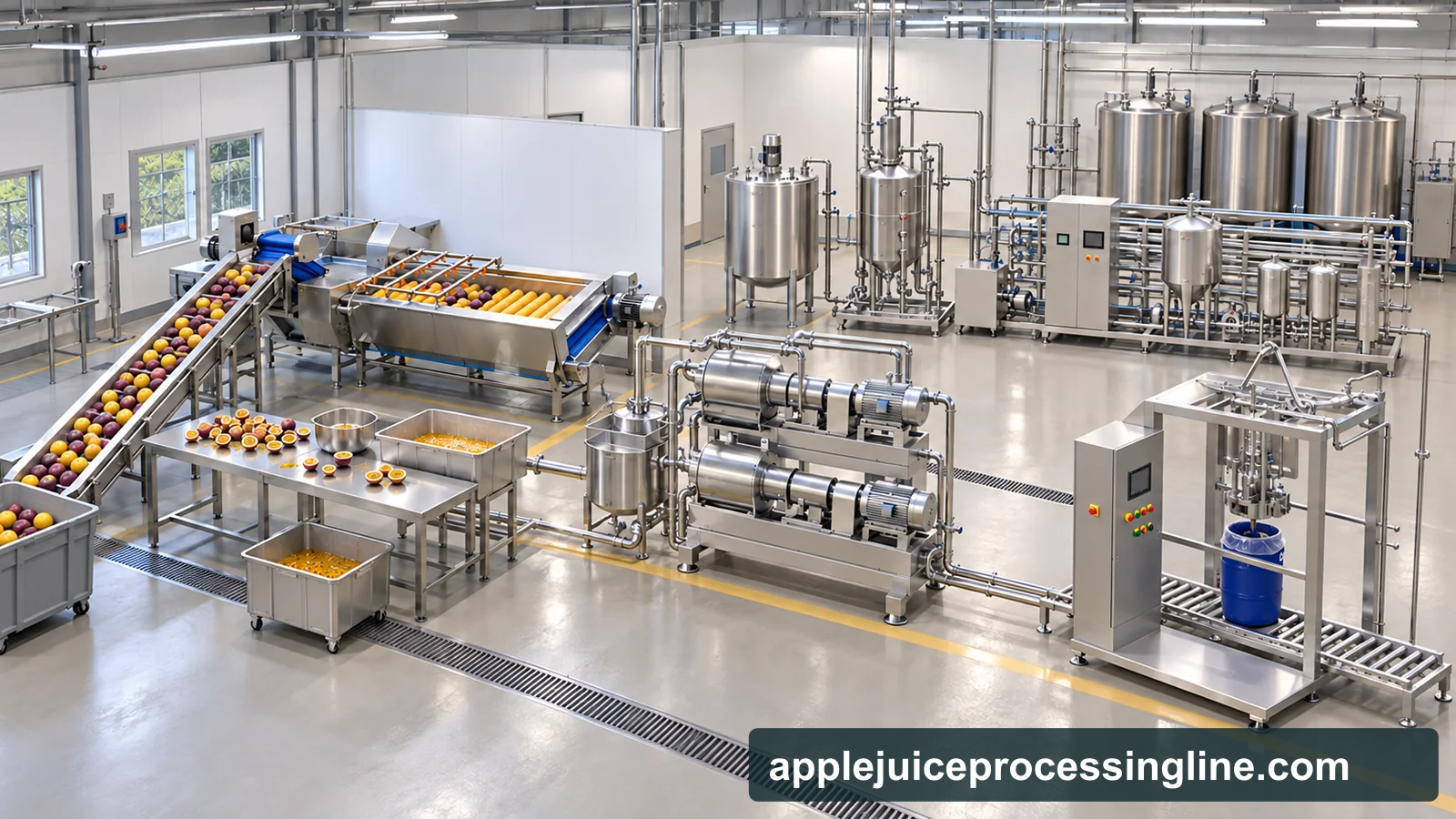

Depicted route: Passion fruit pulp
Passion fruit processing separates the shell from the seed-bearing internal pulp, then establishes the desired seed and suspended-pulp character. Fruit dimensions, shell behaviour and the intended ingredient should be evaluated together. Wash the fruit, open or separate the rind and collect the seed-bearing pulp. Recover the juice and refine to the specified residual pulp content. Concentrated juice and a visibly seeded fruit preparation need distinct finishing decisions; aroma retention should be assessed in the actual chosen downstream route.
Raw material and product boundary
Product directions
- juice
- juice concentrate
- nectar base
Incoming material considerations
- Will small purple and larger yellow fruit share one receiving specification, and how will their rind and seed differences be covered in trials?
- Must the final ingredient be seed-free, deliberately seeded or only lightly pulpy, and what extraction intensity achieves that texture without unwanted broken-seed material?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Process flow: preparation to product
- 01
Receive variety-defined fruit
Equipment duty: Inspection conveyor and fruit grader
Identify accepted purple or yellow fruit and remove unsuitable units.
Record the size and shell condition used for the extraction demonstration.
- 02
Wash and inspect
Equipment duty: Fruit washer and brushing where justified
Clean the exterior before opening.
Keep shell debris and external wash water out of the edible-pulp collection.
- 03
Separate shell from internal pulp
Equipment duty: Passion-fruit-compatible opening and extraction unit
Recover the seed-bearing pulp without unnecessary shell inclusion.
Demonstrate shell rejection and the condition of the edible fraction rather than assuming all fruits open alike.
- 04
Separate seeds
Equipment duty: Seed-separating refiner
Recover the desired juice and pulp fraction.
Avoid uncontrolled seed fragmentation; inspect the separated seed stream and finished ingredient together.
- 05
Control suspended pulp
Equipment duty: Finisher and optional further separation stage
Develop the declared pulp level.
A highly pulpy ingredient and a lower-pulp concentrate feed need different acceptance criteria.
- 06
Prepare the final route
Equipment duty: Covered juice buffer and optional concentration interface
Supply the specified single-strength or concentrate project.
Aroma handling and concentration are separately evaluated duties, not automatic claims of retained fresh-fruit flavour.
- 07
Specify preservation around the actual product
Equipment duty: Selected treatment unit, controlled transfer and process instruments
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The seed-separated juice or pulp route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
- 08
Fill, identify and verify the packed ingredient
Equipment duty: Compatible filler, packaging interface and lot-identification station
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment composition and selection
Inspection conveyor and fruit grader
Control the incoming-material presentation before preparation.
Selection basis: Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Passion-fruit-compatible opening and extraction unit
Preparation and extraction.
Selection basis: A trial should distinguish the edible fraction entering extraction from whole-fruit weight. The agreed pulp or seed character determines how much separation follows the initial extraction.
Seed-separating refiner
Create the agreed intermediate condition for downstream equipment.
Selection basis: Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Selection basis: Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
Selection basis: The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Packaging and storage interfaces
Specify whether the seed-separated juice or pulp is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Information for an engineering brief
- Compare accepted fruit sizes and shell conditions, recording shell, seed and finished ingredient fractions independently.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Quality, cleaning and separate streams
Quality observations
- Check shell specks, seed fragments, pulp level, aroma and acidity. Review samples from identified fruit types after comparable downstream handling.
- Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separate material streams
- Keep shell, seeds and pulp-rich rejects separately identified. Each seed has its own juice-bearing aril; do not describe one aril as a pouch enclosing many seeds.
Cleaning and changeover
- Shell residues and small seeds require accessible discharge and screen points. Assess cleaning of open extraction separately from the closed juice circuit.
- Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Passion Fruit and apple juice
Where this route differs from the site's primary line
An apple line separates extraction, clarity and concentration into different decisions. The same distinction is useful here: first define the edible feed and the product to be recovered, then specify any refinement, concentration and packaging. The sequence below describes this material rather than assuming that an apple press or clarification setting transfers unchanged.
Pineapple and passion fruit illustrate two very different juice front ends. Keep the apple distinction between extracted juice and formulated beverage, then specify seeds, fibre and peel removal for each fruit.
Questions about this processing route
Does the first extractor produce a seed-free juice?
Not necessarily. Opening and shell separation recover the internal seed-bearing pulp. A defined seed-separation and finishing stage is needed for the specified juice or pulp product.
Should all suspended pulp be removed?
The buyer’s ingredient specification decides. A pulpy juice and a lower-pulp concentration feed have different texture and separation objectives, so samples should be judged against their intended use.
What should a useful passion fruit trial establish?
Compare accepted fruit sizes and shell conditions, recording shell, seed and finished ingredient fractions independently. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
