Jackfruit Processing Line

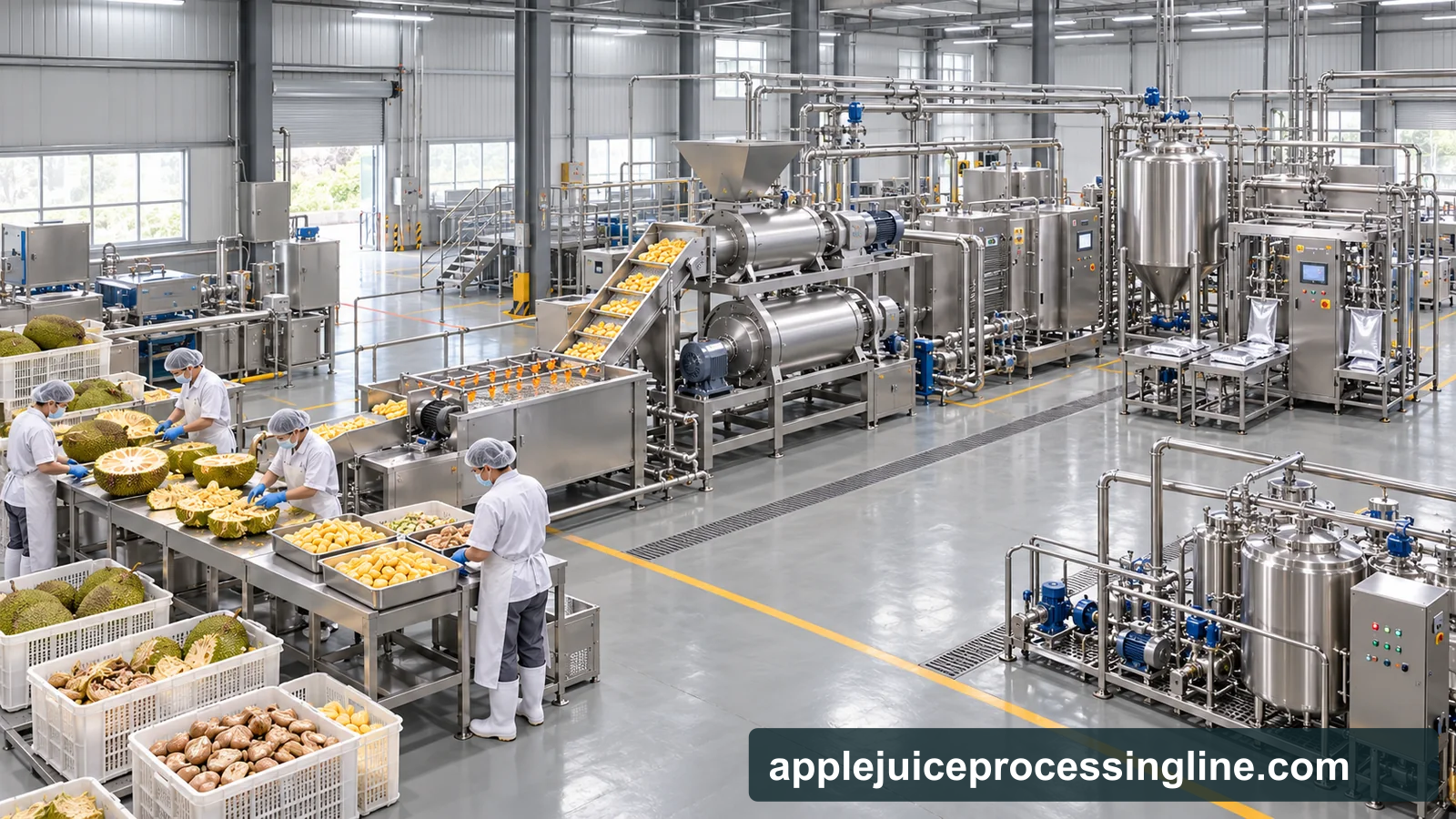

Depicted route: Jackfruit bulb puree
Jackfruit preparation is a component-separation project before it becomes a pumping project. Edible bulbs must be distinguished from rind, core, fibrous material and seeds, with the chosen ripe-fruit ingredient clearly defined. Open ripe jackfruit and separate edible bulbs from rind, sticky core and unwanted structural material. Remove the bulb seeds before grinding into pulp. The resulting ripe-fruit base can feed a preserve or dessert formulation. Young jackfruit intended for savoury pieces is a distinct product with a different preparation target.
Raw material and product boundary
Product directions
- ripe-fruit purée
- jam
- dessert base
Incoming material considerations
- Will the plant receive whole ripe fruit or already separated bulbs, and what labour and waste-handling scope is needed for the sticky core?
- How will seeds and fibrous rag be excluded, and should the final product retain bulb texture or be refined into a uniform ripe-fruit base?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Process flow: preparation to product
- 01
Receive defined whole fruit
Equipment duty: Receiving platform and inspection station
Identify accepted maturity and condition.
Record fruit size and the actual manual or assisted preparation work required; a generic fruit conveyor does not establish that labour scope.
- 02
Clean the exterior
Equipment duty: Exterior washing station and controlled transfer
Clean whole fruit before opening.
Keep rind washdown and the clean edible-bulb preparation area separate.
- 03
Open and separate components
Equipment duty: Preparation tables and guarded cutting tools
Separate edible bulbs from rind, core and coarse fibrous material.
Describe the component streams explicitly so the line drawing does not imply that whole fruit enters a generic pulper.
- 04
Remove seeds
Equipment duty: Bulb inspection and seed-removal station
Prepare seed-free edible bulbs for pulping.
Verify seed removal before the bulbs become an opaque mash.
- 05
Pulp and refine
Equipment duty: Bulb pulper and selected refiner
Develop the chosen purée or fruit-base texture.
Evaluate coarse fibre and mouthfeel using the intended ripe-fruit supply rather than a different jackfruit product.
- 06
Prepare the downstream ingredient
Equipment duty: Covered vessel and viscous-product pump
Supply a measured flesh ingredient to the specified preservation or formulation route.
Jam or blended fruit-base manufacture adds its own ingredients, process and final-product requirements.
- 07
Specify preservation around the actual product
Equipment duty: Selected treatment unit, controlled transfer and process instruments
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The bulb-derived purée or fruit base route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
- 08
Fill, identify and verify the packed ingredient
Equipment duty: Compatible filler, packaging interface and lot-identification station
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment composition and selection
Receiving platform and inspection station
Control the incoming-material presentation before preparation.
Selection basis: Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Preparation tables and guarded cutting tools
Peel, seed and fibre separation.
Selection basis: Preparation should be evaluated using the actual variety and ripeness range. A visually smooth sample does not by itself demonstrate controlled coarse particles, acceptable fibre or stable transfer.
Bulb inspection and seed-removal station
Create the agreed intermediate condition for downstream equipment.
Selection basis: Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Selection basis: Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
Selection basis: The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Packaging and storage interfaces
Specify whether the bulb-derived purée or fruit base is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Information for an engineering brief
- Demonstrate the actual component-separation labour and bulb recovery before evaluating the pulper or downstream equipment.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Quality, cleaning and separate streams
Quality observations
- Check residual seeds, coarse fibre, maturity character and consistency. A trial should account for whole fruit, edible bulbs and each preparation reject separately.
- Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separate material streams
- Collect rind, core, seeds and coarse fibre as separate streams. Proposed co-products require independent acceptance and handling plans rather than being assumed usable food ingredients.
Cleaning and changeover
- Bulb preparation surfaces, cutters and pulper contact points need access for adhering residues. Separate open-preparation cleaning from the closed purée circuit.
- Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Jackfruit and apple juice
Where this route differs from the site's primary line
An apple line separates extraction, clarity and concentration into different decisions. The same distinction is useful here: first define the edible feed and the product to be recovered, then specify any refinement, concentration and packaging. The sequence below describes this material rather than assuming that an apple press or clarification setting transfers unchanged.
Mango, banana and other dense tropical fruits often sell as purée or nectar bases. Their viscous flesh shifts the emphasis from apple juice clarity to peeling, refining and transfer.
Questions about this processing route
Can whole jackfruit feed a standard pulper?
The defined route first separates the edible bulbs and removes seeds and unwanted structural material. A complete-line scope must describe those preparation operations rather than bypassing them in an illustration.
Is a ripe-fruit purée route suitable for every jackfruit product?
No. The incoming maturity and intended food product must be declared. Preparation and texture targets for a ripe purée should not be transferred to a different jackfruit application without development.
What should a useful jackfruit trial establish?
Demonstrate the actual component-separation labour and bulb recovery before evaluating the pulper or downstream equipment. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
